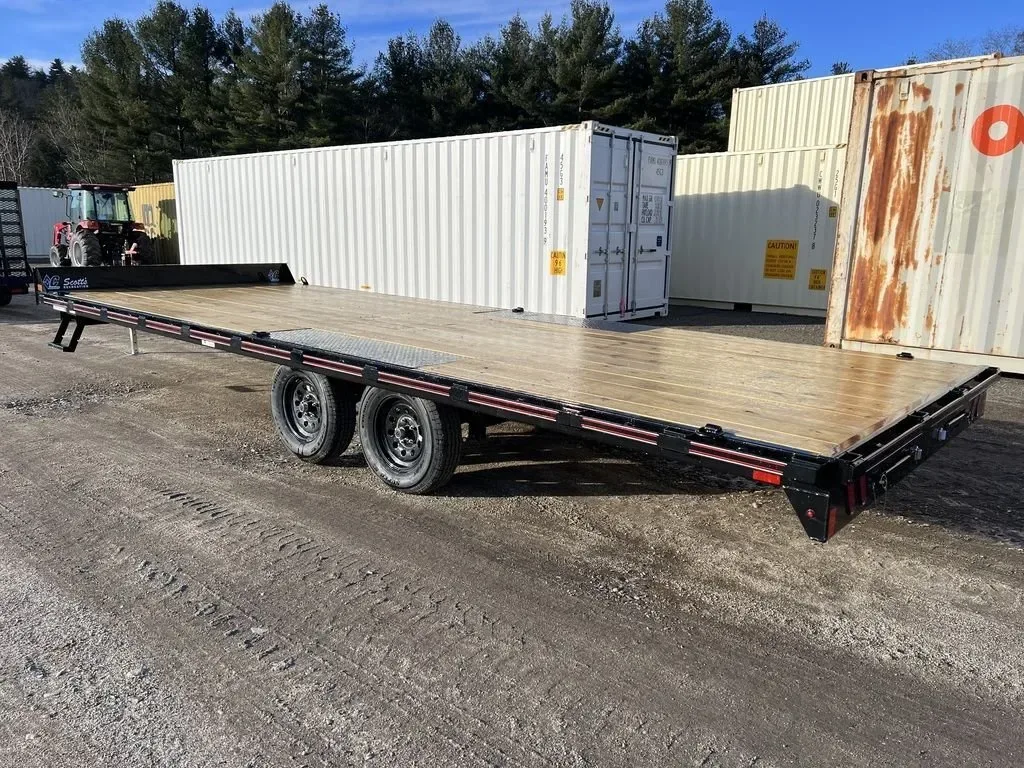

2024 Diamond C 8.5×22 7K Deckover Trailer for Sale

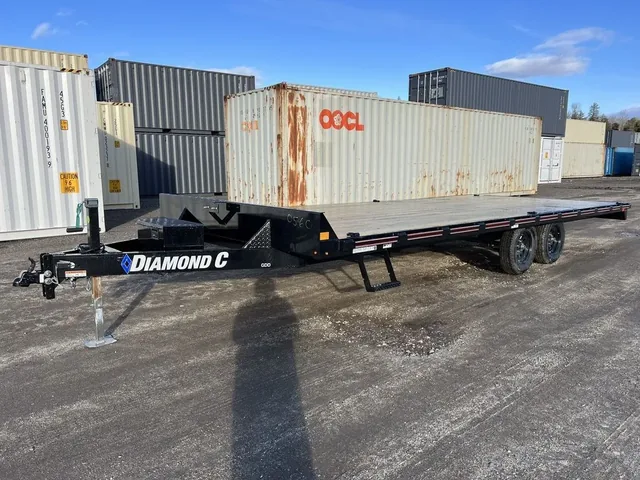

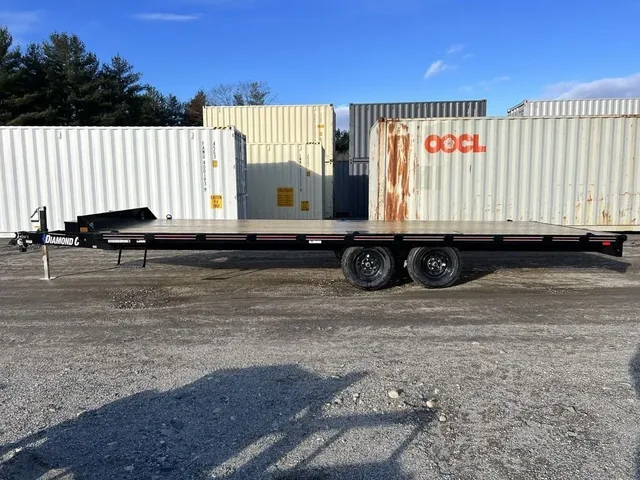

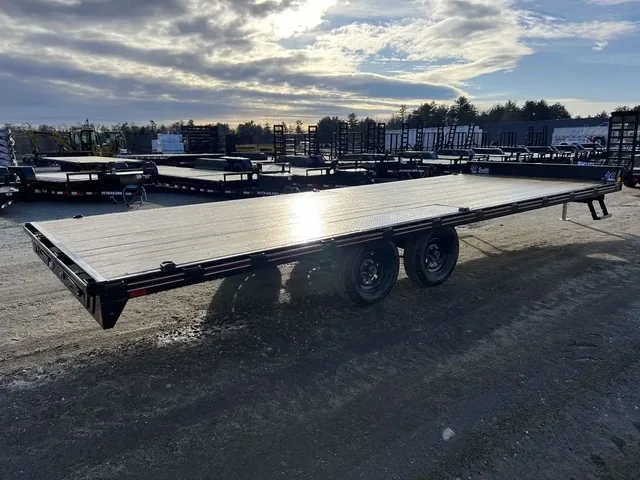

Built for haulers who need a wide, flat, obstacle-free deck, this new 2024 Diamond C 8.5×22 deckover trailer (model GDD23522x102) rides above the wheels so you get a full 8.5-foot-wide working surface with no fender intrusion. Finished in black and rated at a 7,000 lb GVWR, this 7K deckover equipment trailer suits landscapers, small-equipment operators, and property owners moving mowers, UTVs, lumber, and pallets across a generous 22-foot deck.
Why a Deckover Design Works Harder
Because the deck sits over the tires instead of between them, you can load wide implements and skids that simply won’t fit on a standard between-the-wheels trailer. The integrated slide-in ramps store on the rear when not in use, so there’s nothing to trip over during loading, and the tandem electric-brake axles give you confident, controlled stops even under a full payload.
Specifications
- Year: 2024, Make: Diamond C, Model GDD23522x102, Black, New condition

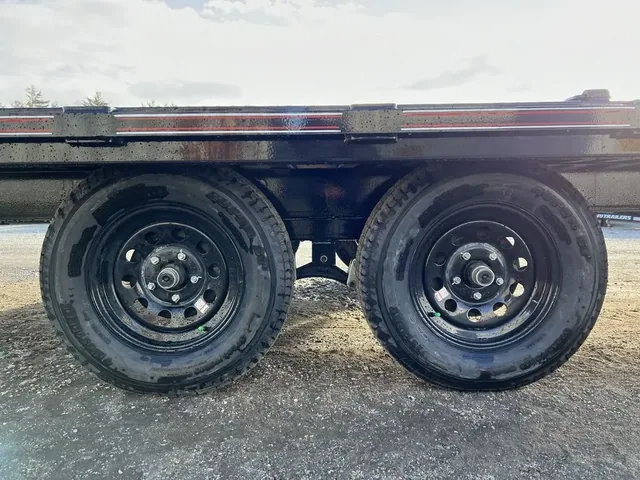

- Two 3.5K Super Lube electric brake axles with 4-leaf spring suspension

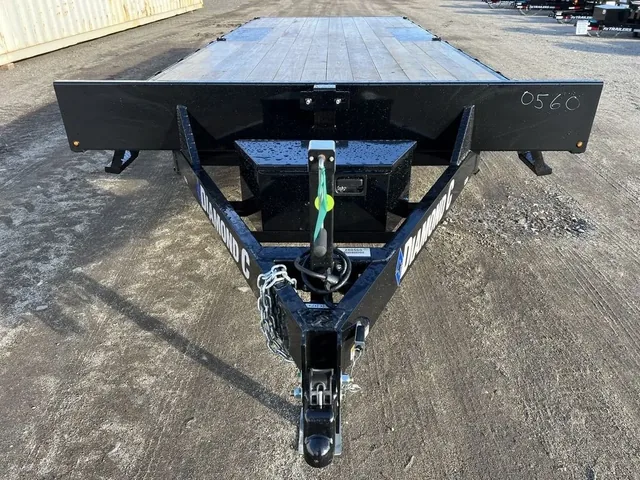

- 2″ – 10,000 lb Demco EZ-Latch adjustable channel coupler
- 6″ channel frame with 3″ I-beam crossmembers on 24″ centers

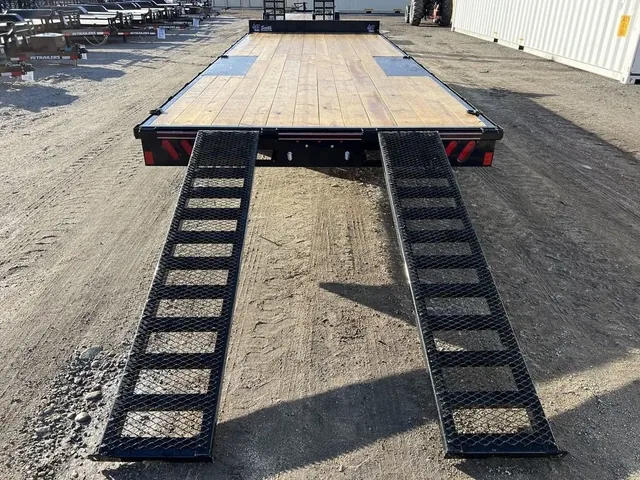

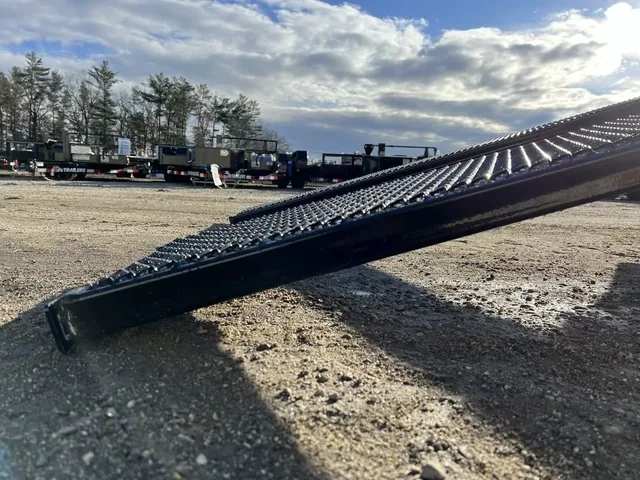

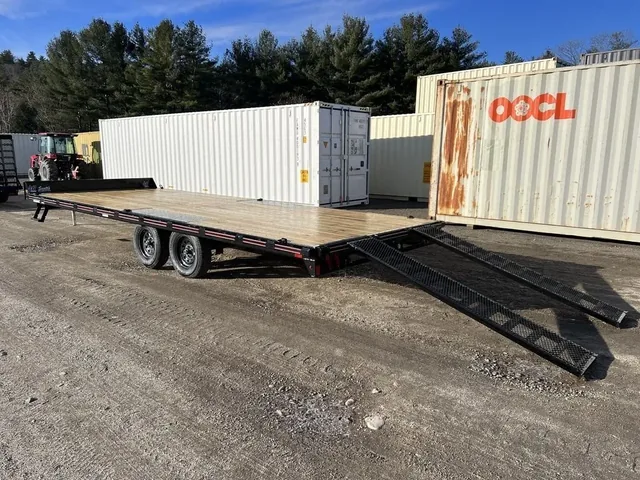

- 82″ slide-in ramps (2″ square tube) and channel tongue with integral frame

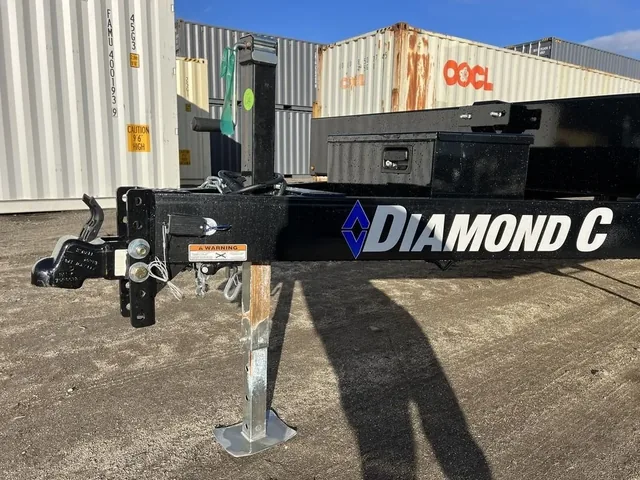

- 7,000 lb drop-leg jack, 2″ x 1/4″ rub rail with stake pockets and pipe spools

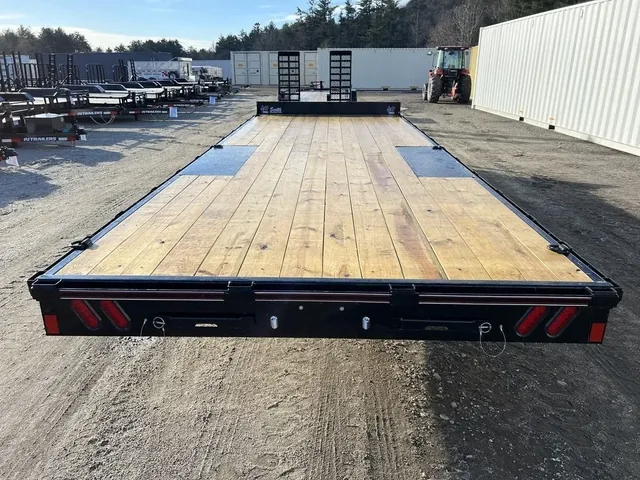

- 2″ treated decking, ST205/75R15 radial tires, all LED lights

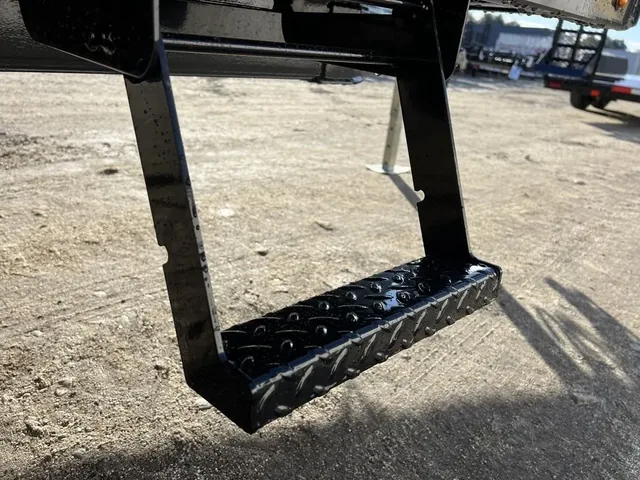

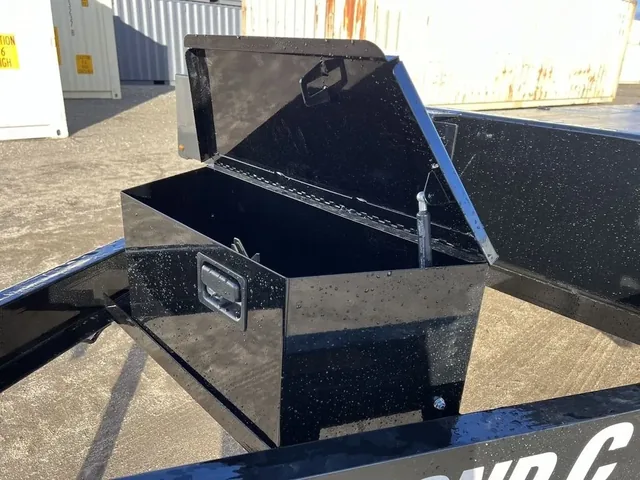

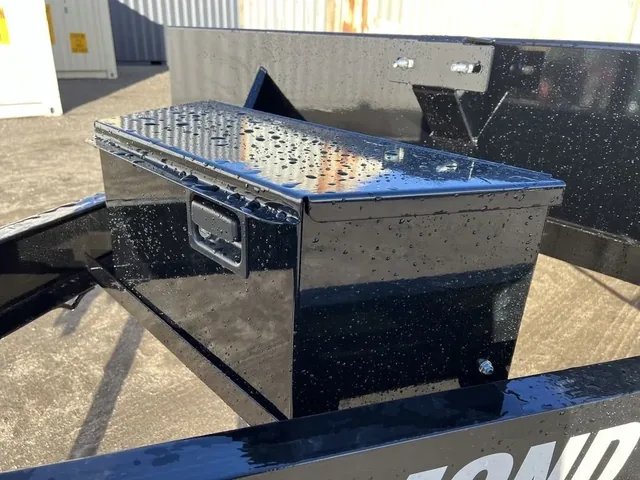

- Added options: lockable tongue storage box, spare mount, 1/2″ D-rings, retractable steps
- GVWR: 7,000 lbs — EVW: 3,120 lbs — Payload: 3,880 lbs
When sizing a trailer, match the payload rating to your heaviest expected load and leave headroom; here the roughly 3,880 lb payload comfortably covers most compact machines and material loads. The 1/2″ D-rings and stake pockets give you multiple tie-down points, and it’s worth confirming your tow vehicle’s rating and hitch match the 2″ coupler before pickup.
Every trailer is available for inspection before purchase, and we deliver nationwide from Marietta, Ohio. Contact Ironyard to request a quote and lock in delivery on this deckover trailer.
