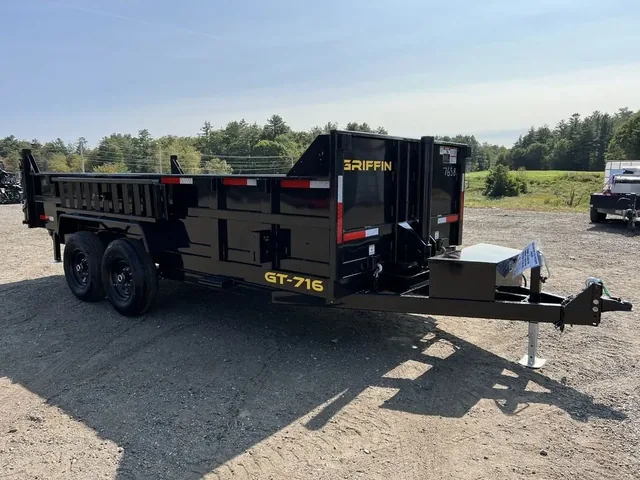

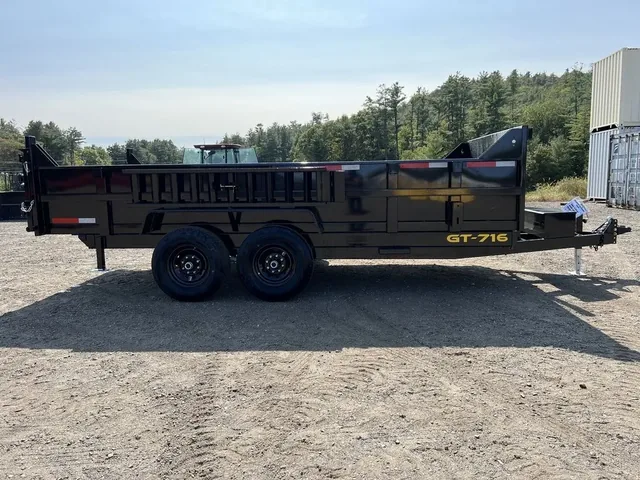

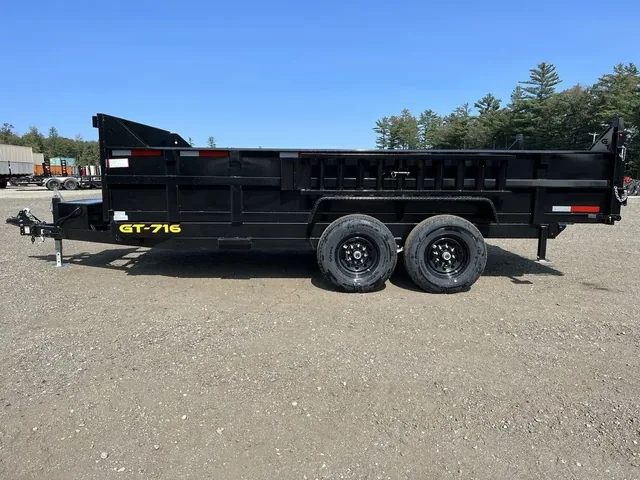

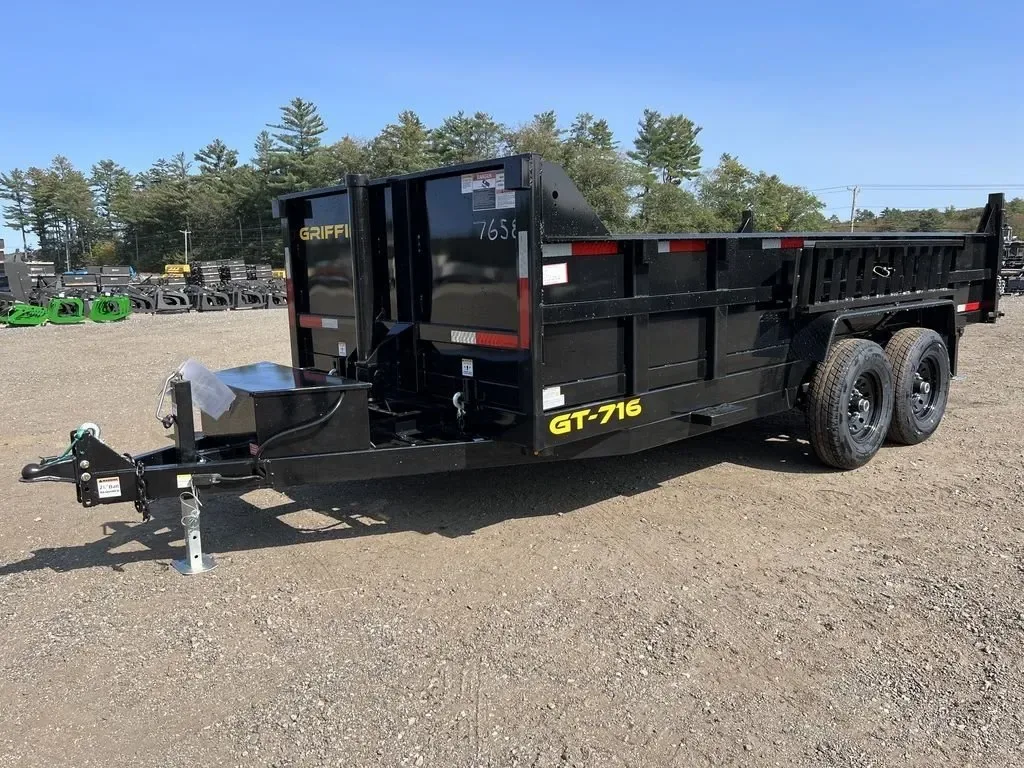

2024 Griffin Trailers 7×16 14K Telescopic Dump Trailer for Sale
When you need a dump trailer that handles heavy loads and long jobs, this 2024 Griffin 7×16 telescopic dump trailer delivers a 14,000 lb GVWR and a 3-stage telescopic lift built for demanding hauls. Finished in high-gloss black powder coat, it’s a new, contractor-grade unit with a 9,145 lb payload and the accessories that make dirt, gravel, and debris work go smoothly.
Telescopic Power Where It Counts

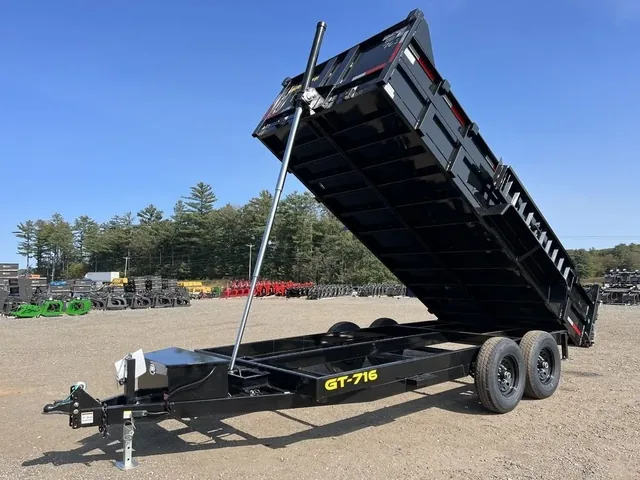

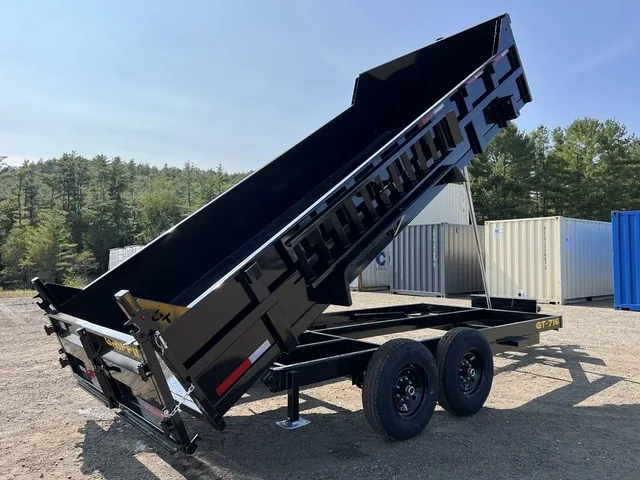

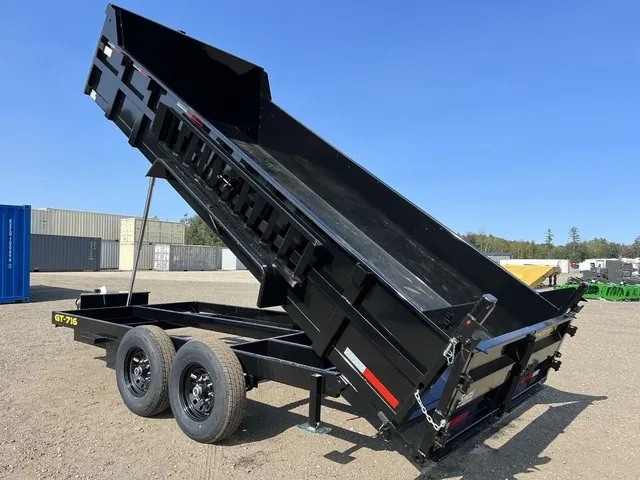

Unlike a single-cylinder scissor hoist, the 3-stage telescopic lift system raises the bed to a steeper, more complete dump angle so material clears out cleanly, ideal for wet soil, mulch, and sticky loads. A 12V DC hydraulic pump provides power up and power down, fed by a deep cycle marine battery and managed from a control box with easy front access. The 2-way combination spreader/barn rear gate lets you spread material as you drive or swing it wide for bulk dumping.
Specifications
- 2024 Griffin Trailers, model GT-716/TELE, new, black
- 3-stage telescopic lift system, 12V DC hydraulic pump (power up/down)
- 10ga smooth steel walls and floor, 80″ C-channel frame
- 2″x12″ wall extension dimension, front & rear gussets

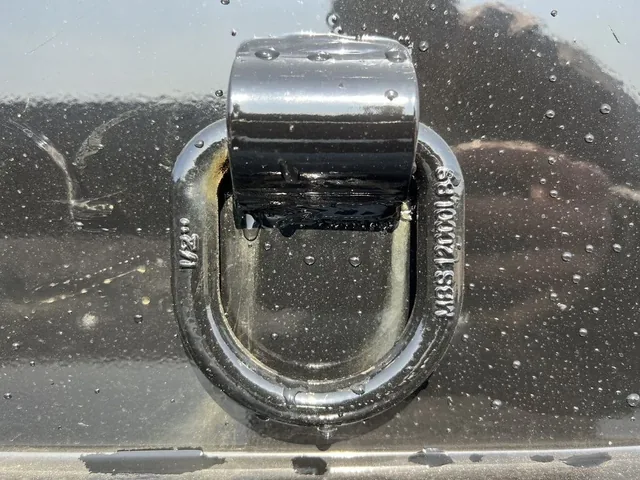

- Five 5,000 lb D-rings welded into the floor, tarp kit ready with brackets

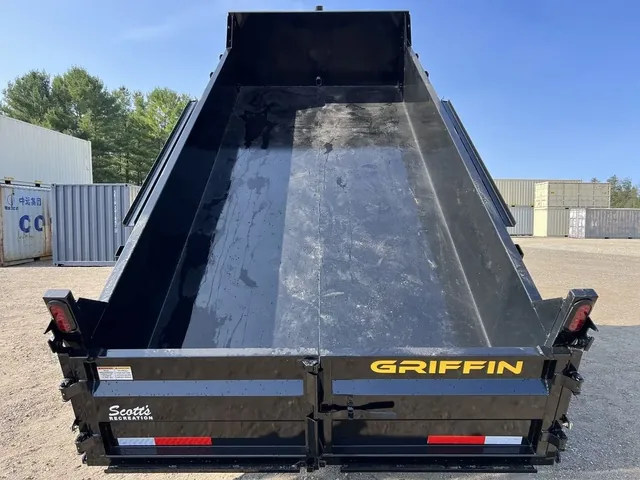

- 2-way combination spreader/barn rear gate

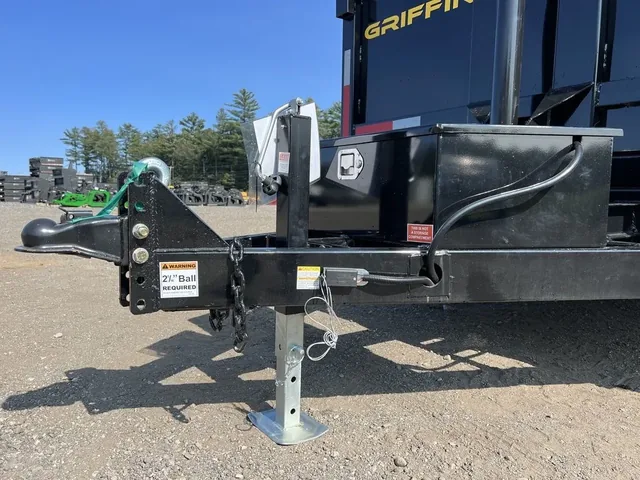

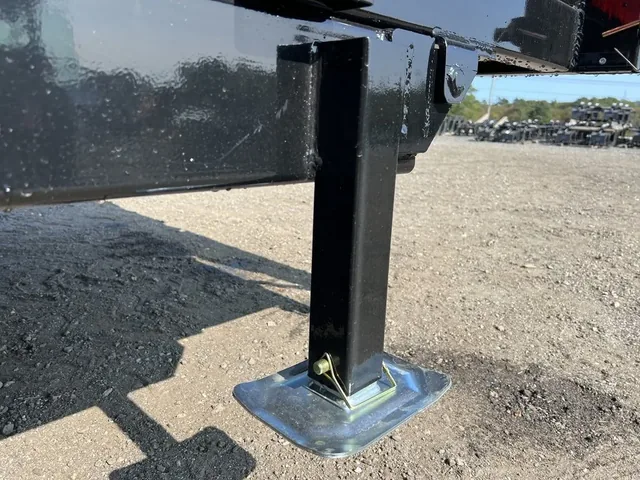

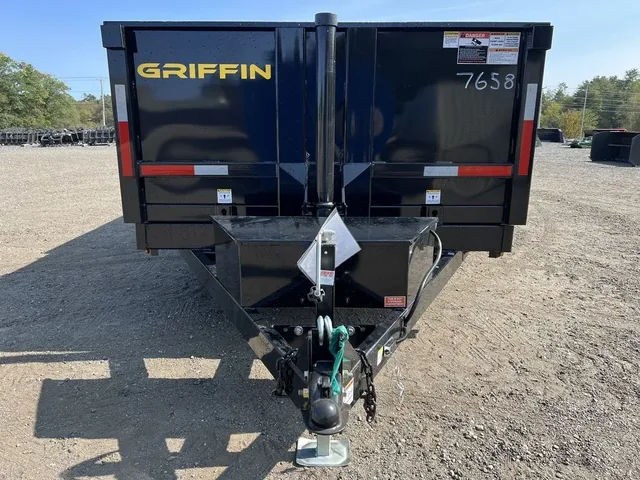

- 2-5/16″ adjustable coupler, 7,000 lb top-wind drop-leg jack

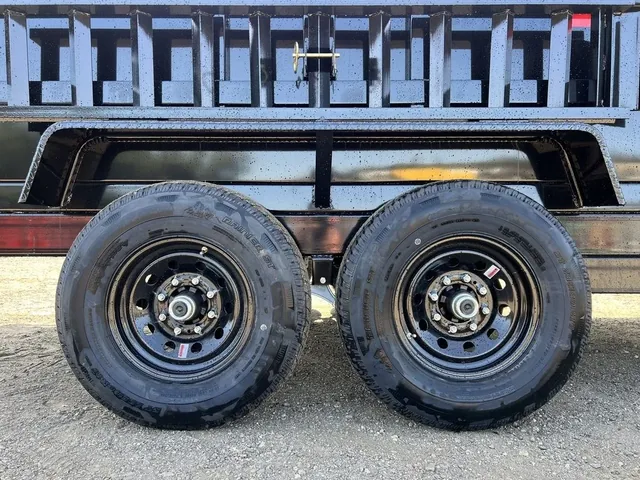

- 16″ radial tires, tandem EZ Lube axles with galvanized components
- Equalized leaf spring suspension, amber & red LED lighting

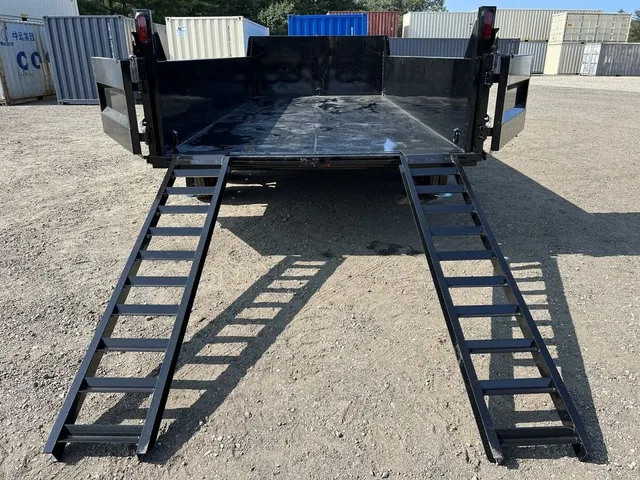

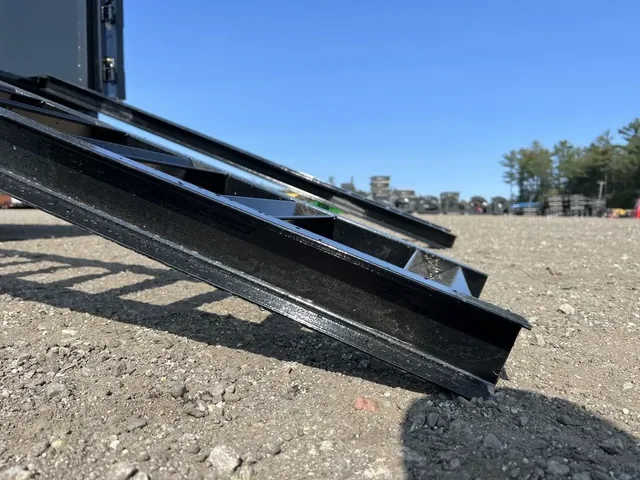

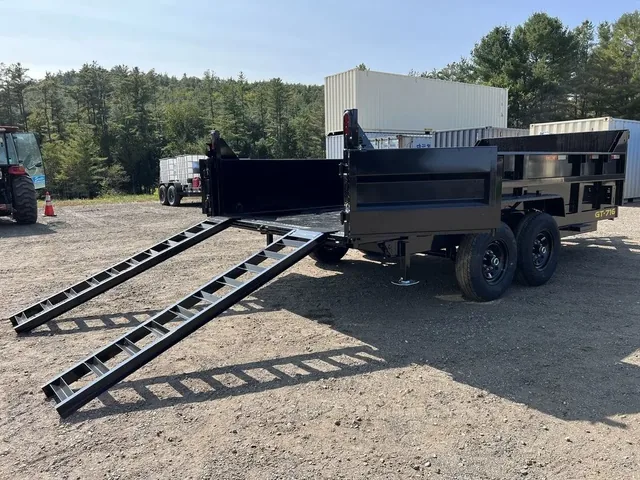

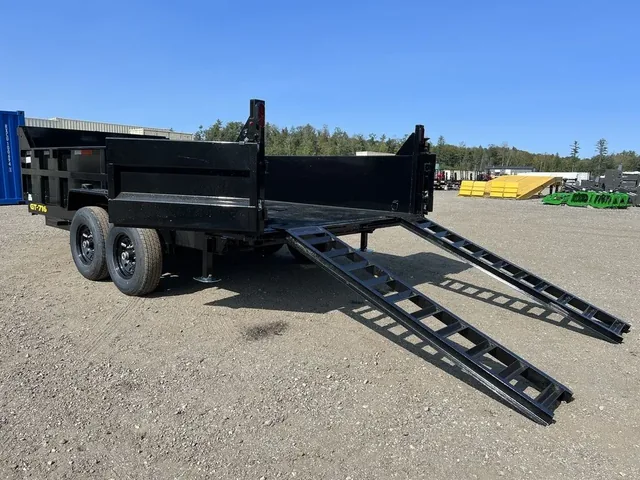

- Fender-mounted adjustable channel ramps, spare tire mount
- GVWR 14,000 lbs, empty 4,855 lbs, payload 9,145 lbs
When sizing a dump trailer, match the GVWR to your heaviest routine load and confirm your tow vehicle and hitch are rated for it. The included channel ramps let you load equipment like mini-excavators or skid steers, while the welded D-rings secure them for transport. Check tire condition and battery charge on delivery.
This trailer is available to inspect, and we deliver nationwide from Marietta, Ohio. Request a quote today to put it to work.
